- The kit does NOT INCLUDE: motor, silencer, rotor blades, servos, FBL system, battery, wiring, switches, any other accessories or other components that may be seen in the pictures of the helicopter.

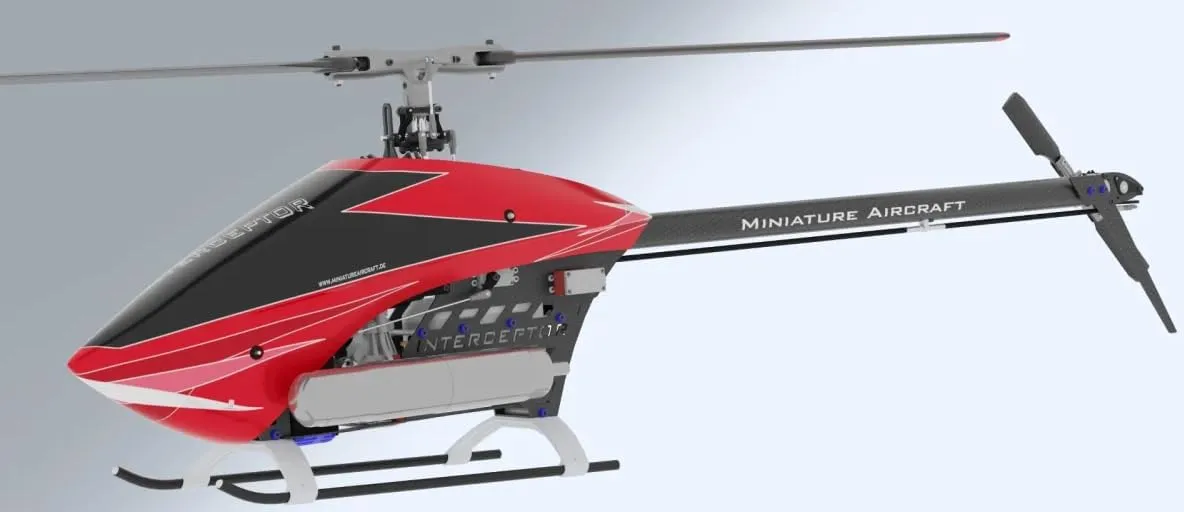

- - The new Miniature Aircraft Interceptor is the first series-produced model helicopter designed specifically for the second-generation O.S. GT15HZ-II gasoline engine. - A two-stroke gasoline engine requires efficient and powerful cooling because it operates at significantly higher cylinder- and cylinder-head temperatures than a nitro engine of comparable size. - The second generation of the O.S. GT15HZ is therefore equipped with a large, CNC-milled cylinder head which contributes to a good cooling of the engine.
- All new developments take place at Miniature Aircraft's headquarters in Bavaria. Our team has been supporting us for many years with above-average commitment very successfully in testing of new technologies and new models.
- The Interceptor has a specially designed cooling system to keep the engine temperature under control in all situations. Different fan impellers allow the engine power required for cooling to be matched to the environmental conditions, gear ratio, rotor blade length and the pilot's flying style. An aggressive 3D flying style, flown in Florida, requires a different cooling system setup than leisurely flying in Montana. This can optimize the flight performance of the helicopter by adjusting the motor power needed for cooling.
Chassis:
Rugged carbon chassis made from 100% carbon specially made for Miniature Aircraft.
CNC machined clutch bell made from high quality non-ferrous alloy. The usual glued-in friction lining is completely omitted. Made in Bavaria.
Transparent fuel tank with 440 ccm volume for long flight times
CNC machined aluminum AL6061-T6 components
CNC machined helical module 1 gears made of high quality materials
High quality ball bearings from renowned manufacturers
CNC machined aluminum tail drive pulleys
Hardened main rotor shaft and tail rotor shaft
Optimized and highly efficient cooling system for the engine
Different optimized aluminum fan wheels available
Aluminum fan/clutch hub
120° swashplate linkage
Aluminum tail tube clamp
Hexagonal start adapter
Rotor Head:
Full ball bearing with thrust bearings.
8mm spindle shaft
CNC machined aluminum swashplate with high quality pivot bearing
High quality control balls. Made in Bavaria.
New two-piece CNC machined aluminum blade holders for precise blade guidance and easy installation
Tail rotor:
Fully ball bearing mounted with thrust bearings
Position left or right selectable (optional)
Direction of rotation selectable (optional)
Extremely light and stable 29 mm carbon tail tube
Carbon control linkage with aluminum end pieces
Hardened tail rotor shaft
Canopy:
New styling combined with new designs
Recommended accessories:
Engine and Muffler
Main Rotorblades (Recommend 620mm main blades)
Tail Rotorblades (Recommend 95mm tail blades)
15mm servo for throttle
15mm servo for choke
3x 20mm servos for cyclic
20mm servo for rudder
