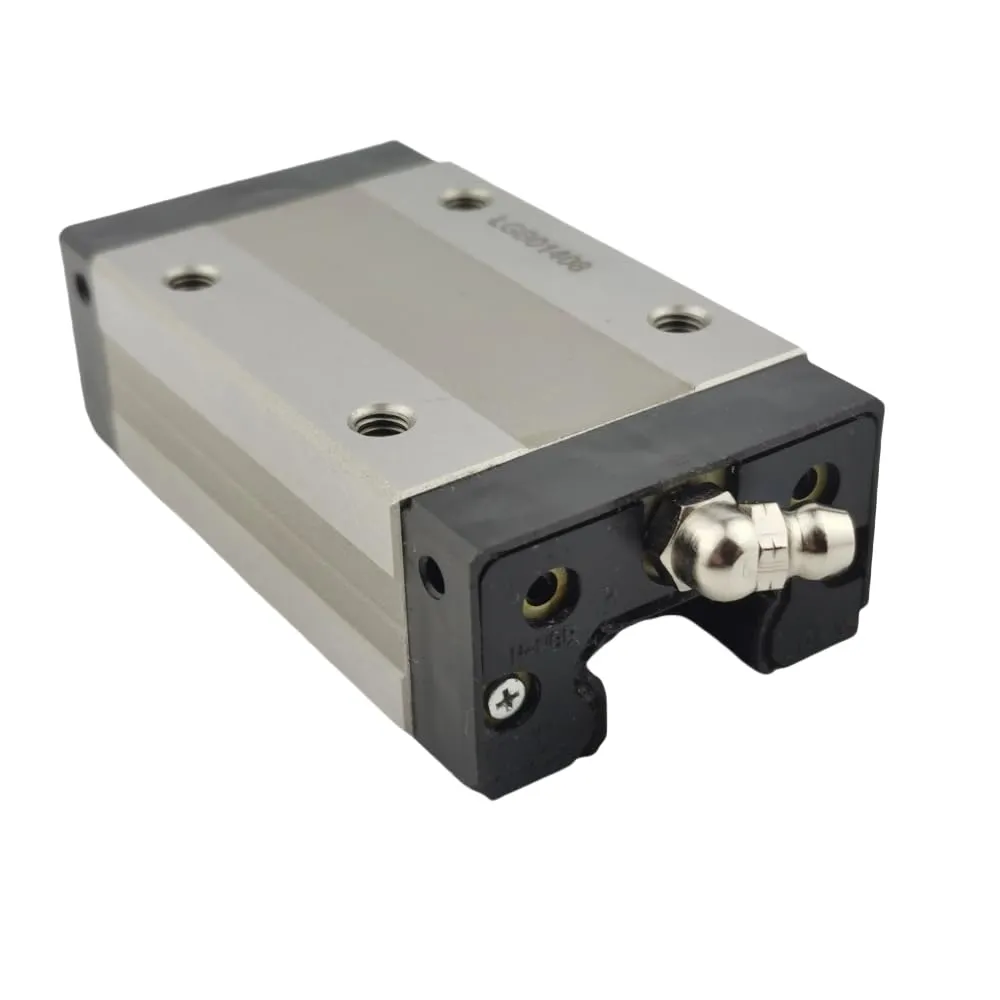

- 4-way Equal Load:Each row of balls is placed at a contact angle of 45° so that the rated loads applied to the LM block are uniform in the four directions (radial, reverse radial and lateral directions), enabling the LM Guide to be used in all orientations and in extensive applications
- Self-adjustment Capability:The self-adjustment capability through front-to-front configuration of THK’s unique circular-arc grooves (DF set) enables a mounting error to be absorbed even under a preload, thus to achieve highly accurate, smooth straight motion
- Global Standard Size:SHS is designed to have dimensions almost the same as that of Full Ball LM Guide model HSR, which THK as a pioneer of the linear motion system has developed and is practically a global standard size
- Stainless Steel Type also Available:A special type whose LM block, LM rail, and balls are made of stainless steel is also available. Applicable only to models 15 through 25
- Rails available:If you need rails,please share the length you need to us
- Delivery:Within 2 days
How to Fix Blocks Onto Rails? Linear guides are supplied with transparent plastic stoppers that function as mini rails to secure the balls from falling off when it’s not into the stable position on the rails. Arrange the plastic stoppers with the rail and slowly slide the block from the plastic rail onto the actual profile rail. During this process, ensure that the block doesn’t misalign. When the block is successfully transferred onto the profile rail, the plastic rail will be automatically pushed out in the process. Watch the process here. With the availability of 3 widespread inventory warehouses, Shafttech is able to manage the extensive stock of STAF and other brands to deal with the growing sales volume regionally. This strong partnership of Shafttech with various brands makes it possible for us to achieve an extensive distribution network among various countries. To know more about our other products, reach us today and get reliable services in return.
- Product Dimensions : 3.11 x 1.73 x 1 inches; 12.35 ounces
- Date First Available : December 17, 2024
- Manufacturer : AEDNX
- Country of Origin : Japan
